LLW Screen Worm Centrifuge (Mechanical Gearbox Type)

应用领域: Horizontal screen worm centrifuge has been widely applied in the chemical, food, salt, mining, pharmaceutical and other industries. Based on its separation principle, structural characteristics and relatively specific separation objects, this product is mainly applicable to the separation of materials with relatively large particle sizes and without strict requirements for the integrity of the particles, such as various crystals, fibers, crop shells, and plastic particles.

Introduction
Features

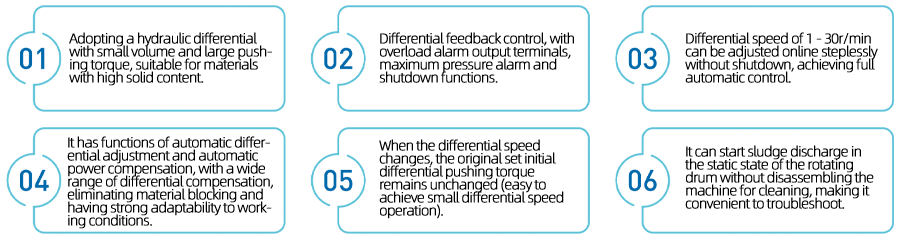

Configured with hydraulic differential, small in volume and large in pushing moment, applicable to separation of materials with high solid content.

Differential feedback control, with the functions of overload alarm at the leading-out terminal, maximum pressure alarm, and shutdown.

Online stepless control of differential speed at 1-30r/min, without shutdown of the equipment, realizing full-automatic control.

Designed with automatic differential adjustment and power compensation, as well as large compensation range to eliminate the blockage of materials, highly adaptive to various working conditions.

The pushing moment at the initial differential remains unchanged despite the change of differential (for better operation at small differential speed).

Deslagging can be enabled in the static state of the bowl, with no need to disassemble the equipment for washing, easier for troubleshooting.

Compared to the cycloidal pinwheel differential, the planetary differential is more uniquely advantageous, especially in: power dividing and adaptive compensation during power transmission; achieving transmission ratio of high efficiency and high speed; coaxality of the input shaft and output shaft; compact structure, small volume, small mass, balanced stress, and strong impact resistance. Currently, the planetary transmission system is more used than the cycloidal pinwheel system as the speed reducer, increaser and variator for various mechanical driving systems.
