Product Introduction

The HR series piston push centrifuge is a filtration centrifuge with continuous feeding and intermittent discharge.

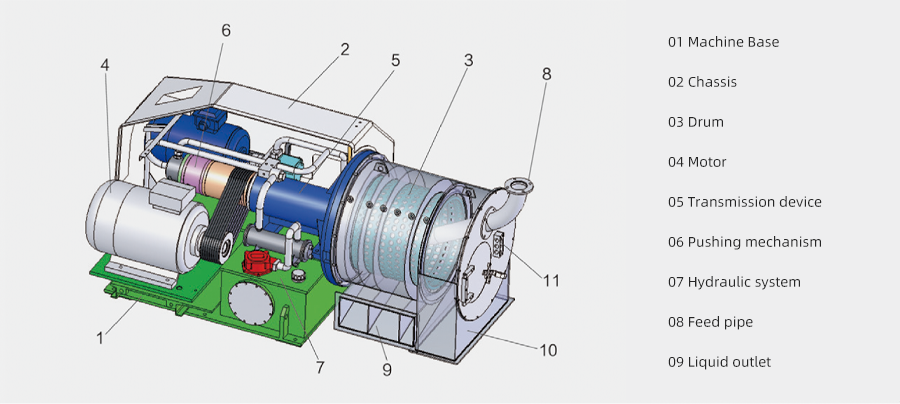

It is mainly composed of hydraulic system, feeding mechanism, machine base, casing, transmission, drum and other components, and can achieve continuous feeding, separation, washing, unloading and other processes at full speed operation.

working principle

The main motor drives the transmission device to run at full speed, and the material is introduced into the inner drum through the feed pipe. Under the action of centrifugal force, it is evenly distributed on the filter screen wall of the inner drum. The liquid phase material flows into the discharge pipe through the filter screen and the drum wall hole, while the solid phase material is intercepted by the filter screen and forms a filter cake layer inside the inner drum. The inner and outer drums rotate at the same speed under the push of the piston, and the inner drum continuously moves back and forth axially. Under the push of the feeding disc, the material is discharged from the inner drum into the outer drum for further separation and formation of an annular filter cake layer. Under the reciprocating push of the outer end face of the inner drum, it is intermittently discharged from the outer drum and discharged outside the machine through the scraper groove.
